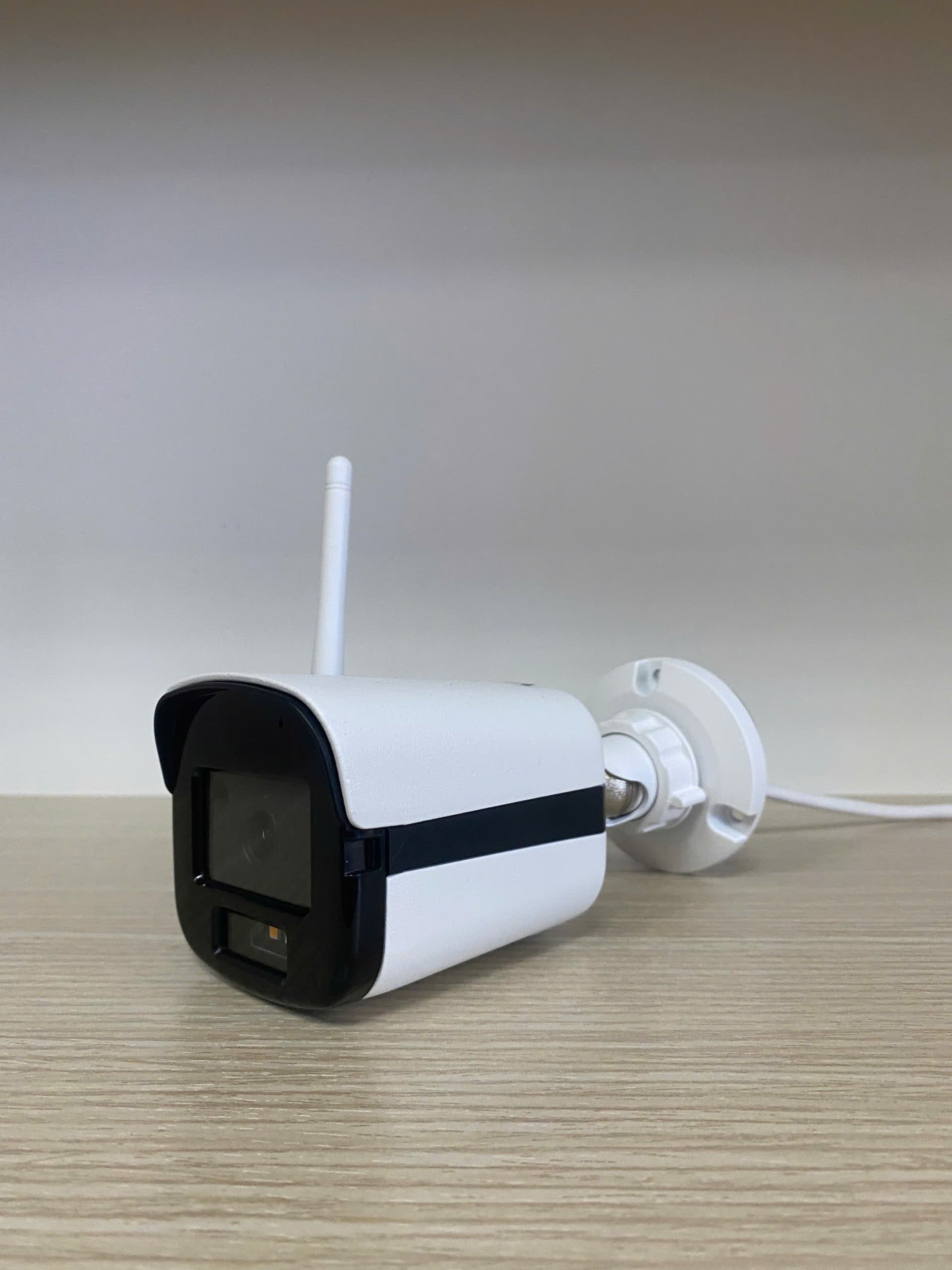

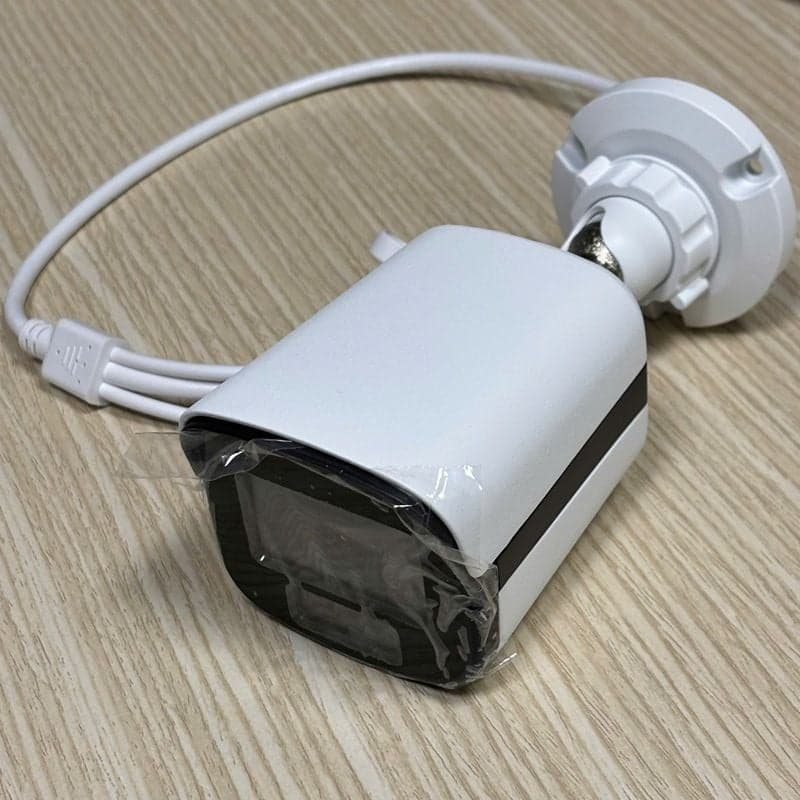

Vivoo VI-C340-E 4MP AI Infrared IP Bullet Camera
Vivoo VI-C340-E 4MP AI Bullet IP Camera with smoke and fire detection, QR/barcode scanning, 30m IR night vision, built-in microphone, 16GB storage, and IP67 protection.
- Built-in microphone
- Built-in 16GB eMMC storage
- Supports ROI
Explore Related Products
Discover advanced AI camera solutions built for smart monitoring, real-time management, and scalable deployment across modern businesses and smart environments.
The Vivoo VI-C340-E is an AI-powered IP camera designed (hardware and firmware) and manufactured entirely in Vietnam by VIVOO TECHNOLOGY CO., LTD. The camera is equipped with the Rockchip RV1106 AI SoC, specifically developed for intelligent video surveillance applications, and the SC401AI image sensor, optimized for AI-based image processing and analytics.
Key Features:
1/3" Progressive Scan CMOS image sensor
4.0 Megapixel resolution
H.264 / H.265 video compression
Fixed lens options: 2.8mm / 4mm
Minimum illumination:
Color: 0.01 Lux @ (F2.0, AGC ON)
B/W: 0 Lux with IR
Up to 30 meters infrared night vision
Built-in microphone for audio recording
Integrated 16GB eMMC internal storage
120dB True WDR (Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
BLC (Backlight Compensation)
ROI (Region of Interest) support
IP67-rated weatherproof design for indoor and outdoor applications
Wireless connectivity support

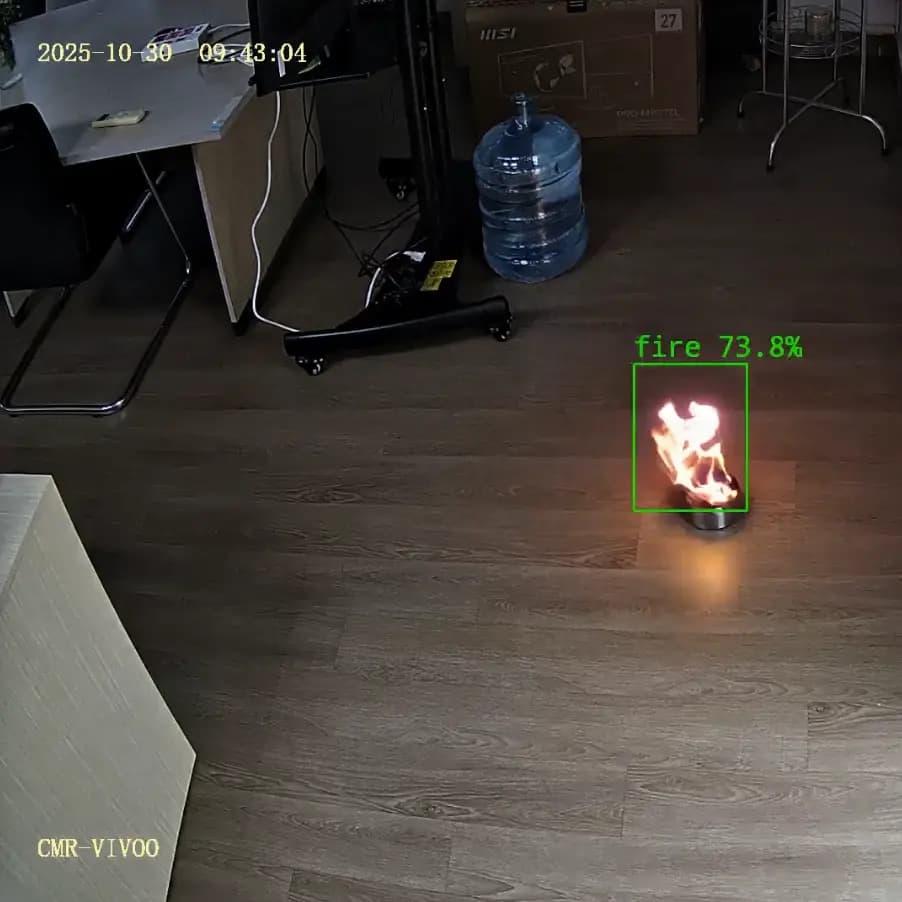

Demo of Vivoo AI-Powered Camera: Smoke and Fire Detection
Demo of Vivoo AI-Powered Camera: QR Code and Barcode Recognition
Technical Specifications:
Model No. | Camera Bullet Vivoo VI-C340-E |
Resolution | 4MP |
Image Sensor | 1/3” CMOS |
Signal System | PAL/NTSC |
Day & Night | IR Cut Filter with Auto Switch |
Lens |
|
Lens Type | Fixed |
Range | 100ft (30m) |
Focal Length | 4mm |
Lens Mount | M12 |
Aperture | F2.0, Fixed |
FOV （Field Of View) | 91.8°(Diagonal), 78°(Horizontal), 38°(Vertical) |
Shutter Type | Rolling Shutter |
ILLUMINATOR |
|
IR LEDS | 2 |
White LEDs/Warmlights | 2 |
IR Range | Up to 30m |
COMPRESSION STANDARD |
|
Video Compression | H.265/H.264 |
Video Bit Rate | 128Kbps~6Mbps |
Audio Compression | G.711A |
Audio Bit Rate | 8KHz |
IMAGE |
|
Max. Resolution | 2560×1440 |
Main Stream | 25fps (2304x1296, 1920x1080, 1280x720, 960x540, 640x360, 320x240) |
Sub Stream | 14fps (704x576, 640x480, 352x288, 320x240) |
Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
Image Enhancement | WDR, 3DNR, 2DNR |
NETWORK |
|
Protocols | TCP/IP, HTTP, UDP, ICMP, DHCP, DNS, NTP, IPv4, Telnet, RTSP, P2P |
System Compatibility | ONVIF |
INTERFACE |
|
Communication interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
Audio I/O | Mic in |
Reset Button | Yes |
On-board storage | Built-in Micro |
GENERAL |
|
Web Client Language | English |
Operating Conditions | -20°C~70C°, 15~95% |
Power Supply | DC (12V) |
Power Consumption | MAX: 5W(12V) |
Protection | IP67 |
Dimensions | 15.4 cm 6.6 cm 6.9 cm |
Weight | Approx. 325g |
Casing Meteria | Metal, Plastic |
